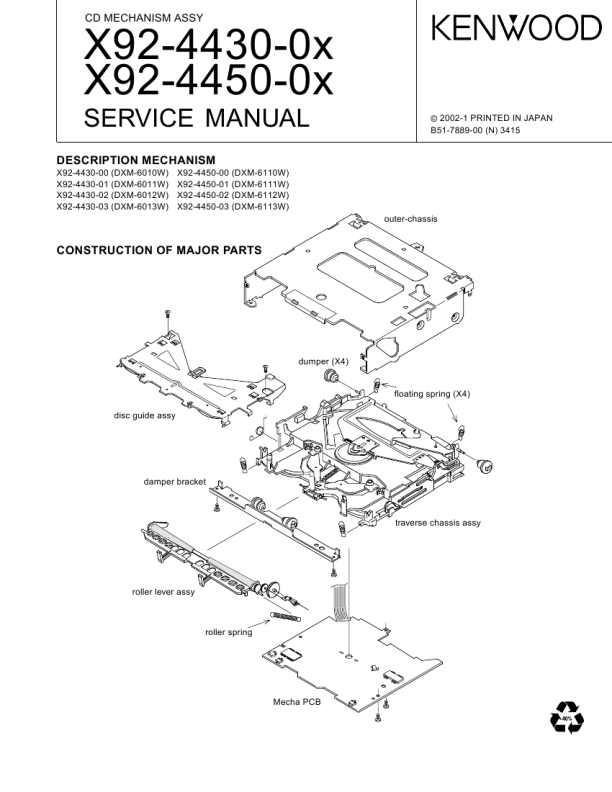

X92-4430-0x X92-4450-0x
(2) Basic construction (Initial position of the planetary gear mechanism) 1) Even after the disc has been inserted, the motor rotated and the gear train also rotated, slider (R) does not start operation yet.This is because the planetary gear mechanism is used and the carrier gear is locked by the slider mechanism. In this period, the planetary gear is in the loose condition. 2) When the sun gear is rotating and the carrier gear is locked, the planetary gear is running idle.
Carrier gear
Locked
Slider (R) Sun gear
Locked
Carrier gear's rib
Planetary
Loose
Planetary gear
Loose
(3) Basic construction (Construction of the trigger slider and slider (R)) The trigger slider is assembled with slider (R) and pushed in the direction of the arrow by the force of a spring.
Slider (R)
Trigger slider
Spring
(4) Operation of slider (R) 1) Activating the trigger slider When the trigger arm is rotated by the pressure of the disc, the trigger arm pushes the trigger slider.
Trigger arm
Center of rotation
Trigger arm
Disc Trigger slider
Trigger slider
Gear teeth on the traverse chassis Carrier gear
2) Rotating (engaging) the planetary gear When the trigger slider is moved, it pushes down the wall (section A) of the carrier gear. (Initial rotation of the carrier gear) This causes the planetary gear, which is attached on a pin of the carrier gear, to move according to the rotation of the carrier gear. When the planetary gear is meshed with a gear tooth (section B) of the traverse chassis, the planetary gear starts rotation. The rotation of the planetary gears causes the carrier gear to rotate.
7
|
|
|
> |
|
